KIT COMPLET POWER VALVE View larger

KIT COMPLET POWER VALVE

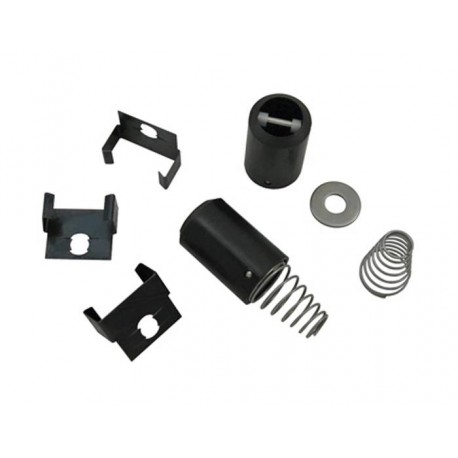

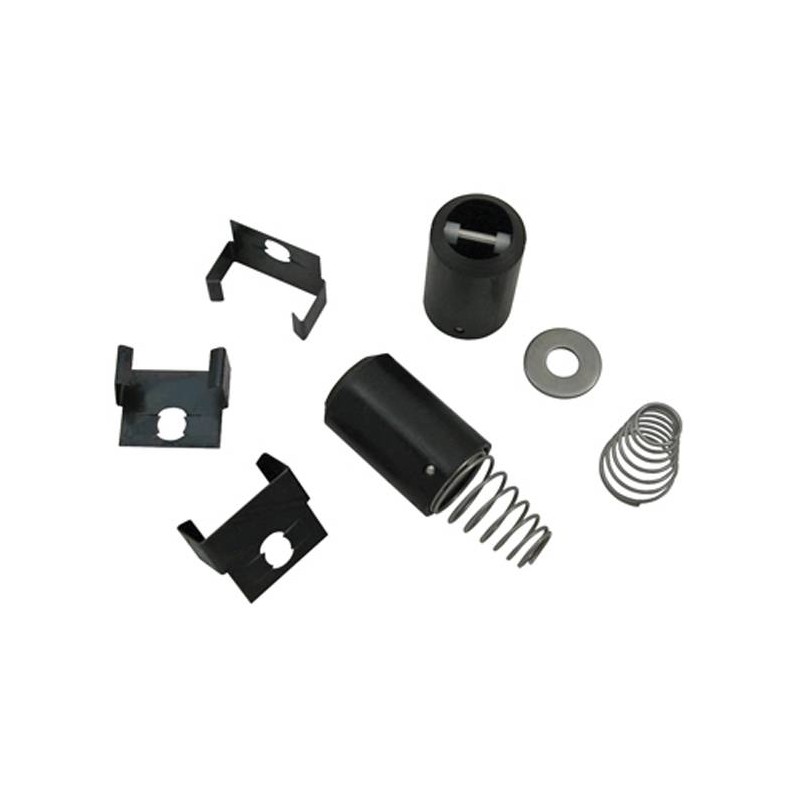

WaveEaterace Valve Kit

Designed as an additional safety measure when storing OEM Powervalves in Yamaha engines. The fitted clip prevents the pin from moving and the valve from falling into the valve guide. Special couplers better synchronize valve actuation thanks to tighter tolerances and improved design.

Instructions:
1. To remove the original couplers, remove the black plastic clip from the power valve shaft. We will not use the black clip when installing the WaveEater couplers.

2. Push the coupler forward and pull it up and up.

3. Install the new WaveEater CouplerSlide on the small end of the spring and then on the stainless steel washer. The washer prevents the split shaft from moving away. Push the washer and spring as far as possible. Then tilt the coupler and slide it over the flat end of the coupler over the long slot in the power valve shaft.

4. Align the pin with the coupling shaft and replace the WaveEater coupler. It will be a very tight fit and may take a bit of strength to set up. Spring keeps it going.

More details

WE-1200-KIT

Riva Racing

New product

Delivery within 3 at 5 days

107,25 €

Add to wishlist

More info

Compatible with the following jet ski:

  • 2000 YAMAHA GP1200R
  • 2000 YAMAHA XL1200 LTD
  • 2002 YAMAHA GP1200R
  • 2003 YAMAHA GP1300R
  • 2004 YAMAHA GP1300R
  • 1999 YAMAHA XL1200 LTD
  • 2001 YAMAHA XL1200 LTD2002 YAMAHA XLT1200
  • 2003 YAMAHA XLT1200
  • 2004 YAMAHA XLT1200
  • 2005 YAMAHA XLT1200
